You can find a copy of my ntopng.conf file in this repo. My only difference is that I changed the port the ntopng web interface runs on from 3000 to 4000. Also, my MariaDB server is on a different host than localhost.
It was time to dust off my rusty SQL skills and to start poking at the MariaDB ntop records to looks for the top flows. After lots of trial and error, the SQL SELECT statement below gave me what I needed:
use ntopng; describe flowsv4; +----------------------+----------------------+------+-----+---------+----------------+ | Field | Type | Null | Key | Default | Extra | +----------------------+----------------------+------+-----+---------+----------------+ | idx | int(11) | NO | MUL | NULL | auto_increment | | VLAN_ID | smallint(5) unsigned | YES | | NULL | | | L7_PROTO | smallint(5) unsigned | YES | | NULL | | | IP_SRC_ADDR | int(10) unsigned | YES | | NULL | | | L4_SRC_PORT | smallint(5) unsigned | YES | | NULL | | | IP_DST_ADDR | int(10) unsigned | YES | | NULL | | | L4_DST_PORT | smallint(5) unsigned | YES | | NULL | | | PROTOCOL | tinyint(3) unsigned | YES | | NULL | | | IN_BYTES | int(10) unsigned | YES | | NULL | | | OUT_BYTES | int(10) unsigned | YES | | NULL | | | PACKETS | int(10) unsigned | YES | | NULL | | | FIRST_SWITCHED | int(10) unsigned | YES | MUL | NULL | | | LAST_SWITCHED | int(10) unsigned | YES | | NULL | | | INFO | varchar(255) | YES | | NULL | | | JSON | blob | YES | | NULL | | | NTOPNG_INSTANCE_NAME | varchar(256) | YES | MUL | NULL | | | INTERFACE_ID | smallint(5) | YES | | NULL | | +----------------------+----------------------+------+-----+---------+----------------+ SELECT INET_NTOA(ip_src_addr) as "SRC_IP", l4_src_port as "SRC_PORT", INET_NTOA(ip_dst_addr) as "DST_IP", l4_dst_port as "DST_PORT", format(SUM(in_bytes),0) as "IN", format(SUM(out_bytes),0) as "OUT" from flowsv4 where INET_NTOA(ip_src_addr) != "192.168.1.151" and INET_NTOA(ip_dst_addr) != "192.168.1.151" and INET_NTOA(ip_dst_addr) LIKE "192.168.1.%" group by l4_dst_port order by out_bytes desc limit 10; +--------------+----------+---------------+----------+-------------+----------------+ | SRC_IP | SRC_PORT | DST_IP | DST_PORT | IN | OUT | +--------------+----------+---------------+----------+-------------+----------------+ | 192.168.1.69 | 57668 | 192.168.1.240 | 902 | 188,567,181 | 28,614,544,156 | | 192.168.1.66 | 55846 | 192.168.1.55 | 443 | 559,914,960 | 2,351,076,647 | | 192.168.1.66 | 45152 | 192.168.1.51 | 9100 | 3,564,870 | 36,772,742 | | 192.168.1.66 | 8086 | 192.168.1.51 | 38324 | 181,208 | 1,172,396 | | 192.168.1.66 | 52326 | 192.168.1.51 | 9091 | 2,122,212 | 15,249,382 | | 192.168.1.66 | 8086 | 192.168.1.65 | 48718 | 695,958 | 2,436,358 | | 192.168.1.66 | 8086 | 192.168.1.65 | 48604 | 3,463,442 | 7,196,070 | | 192.168.1.51 | 32400 | 192.168.1.71 | 49910 | 3,818,437 | 1,267,671 | | 192.168.1.65 | 48718 | 192.168.1.66 | 8086 | 418,736,680 | 89,940,248 | | 192.168.1.65 | 60818 | 192.168.1.71 | 8181 | 4,516,705 | 10,383,015 | +--------------+----------+---------------+----------+-------------+----------------+
I filtered out any flows coming from 192.161.1.51 (My WiFi network) and kept only the flows staying within my Home Lab network (192.168.1.%). Some of the interesting busy ports you see are:

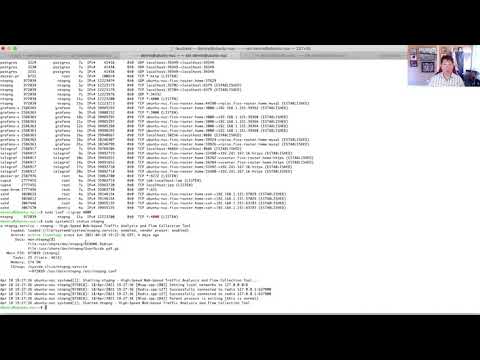

If you are ever unsure what process has a numbered port open, just run the “lsof -i” command on your host:
sudo lsof -i | grep 8086 influxd 9189 influxdb 84u IPv6 59719059 0t0 TCP localhost:8086->localhost:42488 (ESTABLISHED) influxd 9189 influxdb 85u IPv6 59571748 0t0 TCP ubuntu-nuc.fios-router.home:8086->photon-arm.fios-router.home:53650 (ESTABLISHED) influxd 9189 influxdb 89u IPv6 59519210 0t0 TCP ubuntu-nuc.fios-router.home:8086->rpios.fios-router.home:60260 (ESTABLISHED) influxd 9189 influxdb 135u IPv6 59572394 0t0 TCP ubuntu-nuc.fios-router.home:8086->medialinux.fios-router.home:44318 (ESTABLISHED) influxd 9189 influxdb 146u IPv6 61668069 0t0 TCP ubuntu-nuc.fios-router.home:8086->192.168.1.151:54665 (ESTABLISHED) influxd 9189 influxdb 159u IPv6 61962153 0t0 TCP localhost:8086->localhost:39084 (ESTABLISHED) influxd 9189 influxdb 686u IPv6 123187 0t0 TCP *:8086 (LISTEN) telegraf 9432 telegraf 8u IPv4 59720637 0t0 TCP localhost:42488->localhost:8086 (ESTABLISHED) grafana-s 353242 grafana 18u IPv4 61962152 0t0 TCP localhost:39084->localhost:8086 (ESTABLISHED)
LucidChart (and the free Draw.IO) allow the import of CSV files to automatically create diagrams. They even provide CVS templates. I have a license to LucidChart through work, so I went that route.
After playing with the different LucidChart drawing types that support CSV import (Data Linking, Entity Relationship, Org Chart, Process Diagram, Smart Containers, Sticky Notes), I found that the Process Diagram was the closest to the network flow diagram I was after. From LucidChart, create a new diagram, then File > Import Data > Process Diagram > Import Your Data. You will be presented with this dialog box where you can import your CSV or download a CSV template.
Once you have downloaded the template, create a shape row for each of the hosts in the output of your SQL command. Each shape needs a unique ID in LucidChart, so I used the last octet of the host IP address for the shape ID.
Below the rows for shapes, create rows for the flow lines. These rows are identical except for the source, destination, and text (port number) columns. I pasted the SQL output into Excel split into columns based on the pipe and space being column separators. I could them paste columns of source, destination, and port right in to the CSV table. Once you have placed the SQL output unto the correct columns delete any extraneous information you may have pasted into the CSV file and save. (Feel free to use my CSV file to test with)
Import this CSV file as data to create a process diagram and you will see black host circles conected by black port lines. Move the hosts around in the chart as needed for readability and the lines will follow. Format to your liking and you should have a flow diagram like mine.
Thank you for taking the time to read this post. I learned quite a bit working through this process and am sharing to make the process easier for others. I welcome any feedback, questions, or areas for improvement.
